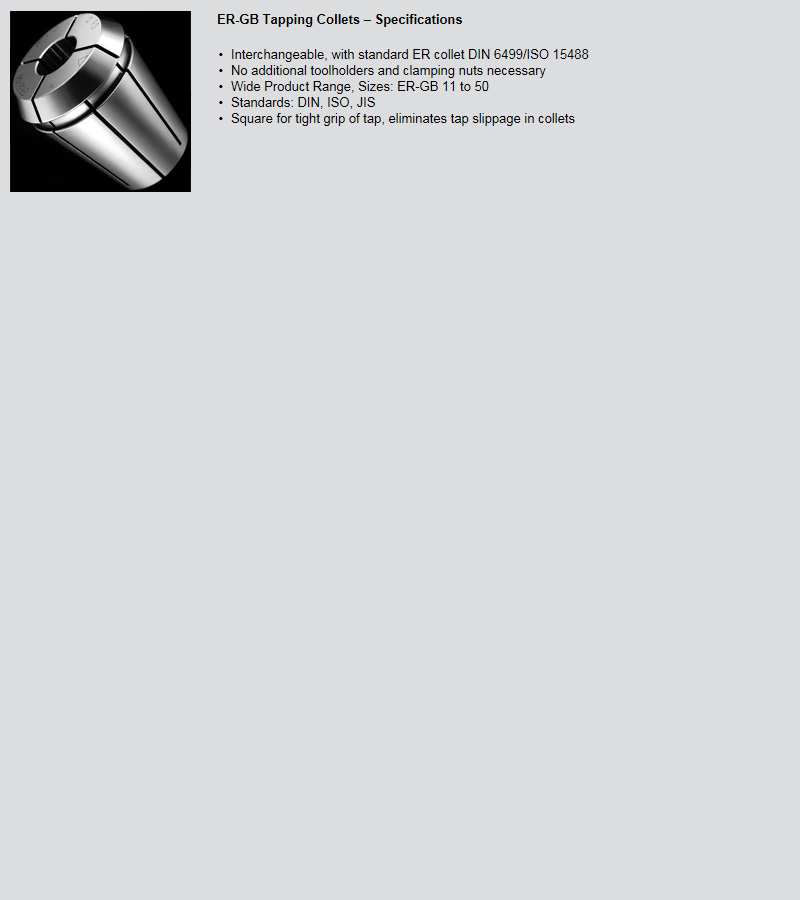

ER SYSTEM > Tapping Collets > ER-GB

TYPE Part. NO Dimensions [mm] Reduction sleeve Ø DXF PDF
D [mm] L [mm] [mm] [Inch]
Ø 2.5x2.0/2.1 mm 1411.02500 2.5
Ø 2.8x2.1 mm 1411.02800 2.8
Ø 3.5x2.7 mm 1411.03500 3.5
Ø 4.0x3.0 mm 1411.04000 4
Ø 4.0x3.15/3.2 mm 1411.04002 4
Ø 4.5x3.4 mm 1411.04500 4.5
Ø 5.0x4.0 mm 1411.05002 5
Ø 6.0x4.9 mm 1411.06000 6
Ø 2.8x2.1 mm 1416.02800 2.8
Ø 3.5x2.7 mm 1416.03500 3.5
Ø 4.0x3.15/3.2 mm 1416.04002 4
Ø 4.5x3.4 mm 1416.04500 4.5
Ø 5.0x4.0 mm 1416.05002 5
Ø 5.5x4.3 mm 1416.05500 5.5
Ø 5.5x4.5 mm 1416.05501 5.5
Ø 6.0x4.9 mm 1416.06000 6
Ø 6.0x4.5 mm 1416.06001 6
Ø 6.2x5.0 mm 1416.06201 6.2
Ø 6.3x5.0 mm 1416.06302 6.3
Ø 7.0x5.5 mm 1416.07000 7
