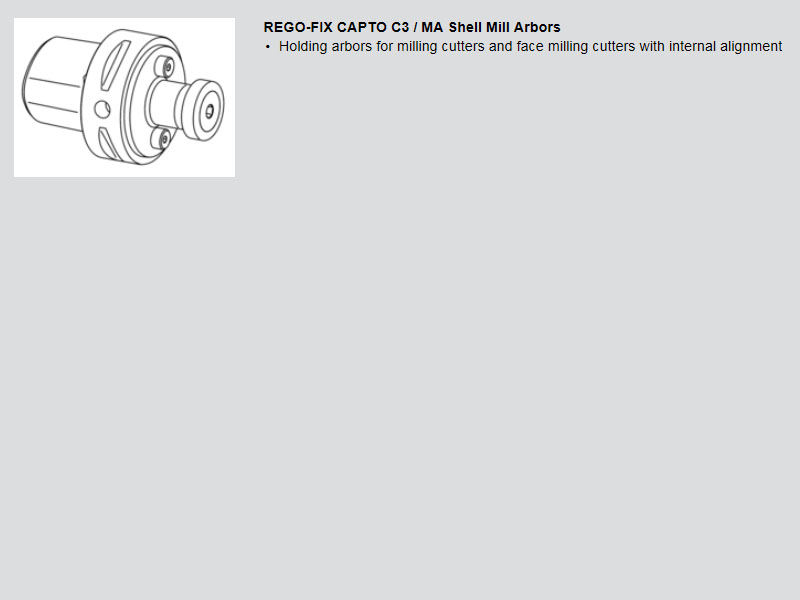

Other Systems > Toolholders REGO-FIX CAPTO > Shell Mill Arbors(MA)
| TYPE | Part. NO | Dimensions [mm] | Reduction sleeve Ø | DXF | |||
|---|---|---|---|---|---|---|---|
| D [mm] | L [mm] | [mm] | [Inch] | ||||
| C3 / MA 16 x 030 | 2803.01610 | 16 | 30 | ||||
| C4 / MA 16 x 032 | 2804.01610 | 16 | 32 |  |
 |
||
| C4 / MA 16 x 055 | 2804.01620 | 16 | 55 | |
|
||
| C4 / MA 22 x 025 | 2804.02210 | 22 | 25 | |
|
||
| C4 / MA 22 x 055 | 2804.02220 | 22 | 55 | |
|
||
| C5 / MA 16 x 035 | 2805.01610 | 16 | 35 | |
|
||
| C5 / MA 16 x 070 | 2805.01640 | 16 | 70 | |
|
||
| C5 / MA 22 x 025 | 2805.02210 | 22 | 25 | |
|
||
| C5 / MA 22 x 070 | 2805.02240 | 22 | 70 | |
|
||
| C5 / MA 27 x 025 | 2805.02710 | 27 | 25 | |
|
||
| C5 / MA 32 x 040 | 2805.03210 | 32 | 40 | |
|
||
| C6 / MA 16 x 040 | 2806.01610 | 16 | 40 | |
|
||
| C6 / MA 22 x 025 | 2806.02210 | 22 | 25 | |
|
||
| C6 / MA 27 x 025 | 2806.02710 | 27 | 25 | |
|
||
| C6 / MA 32 x 025 | 2806.03210 | 32 | 25 | |
|
||
| C6 / MA 40 x 050 | 2806.04010 | 40 | 50 | |
|
||
| C8 / MA 16 x 050 | 2808.01620 | 16 | 50 | |
|
||
| C8 / MA 22 x 030 | 2808.02210 | 22 | 30 | |
|
||
| C8 / MA 27 x 030 | 2808.02710 | 27 | 30 | |
|
||
| C8 / MA 32 x 030 | 2808.03210 | 32 | 30 | |
|
||
